I was inspired by an old post from Kyle Kingsbury, aphyr, on Knossos Redis and linearizability, which I recommend reading. In it, he gathers histories of client read and write results to check whether a hypothetical protocol would be linearizable. Quoting directly from the article:

To verify the history, we need a model which verifies that a sequence of operations applied in a particular order is valid. For instance, if we’re describing a register (e.g. a variable in a programming language–a mutable reference that points to a single value), we would like to enforce that every read sees the most recently written value. If we write 1, then write 2, then read, the read should see 2.

In the rest of the post Kyle builds a state explorer that works by testing all possible combinations of histories against the register model defined above. The exploration continues until a series of events in the abstract protocol is found which proves that the no implementation of the protocol would be ever linearizable!

This all can be translated to TLA+ parlance almost one to one by defining a spec for the asbtract protocol and using a refinement mapping to see For more information of refinement see the chaper in the excelent Specifying Systems book by Lamport. that our client histories correspond to valid behaviors of the model.

Thus, in this post I want to explore the same ideas about histories and models but from a different perspective: by writing TLA+ models that will do the work for us. By using a high level language that is very general and flexible, we can learn about state exploration, models and histories from a different angle.

What does Knossos (Kyle's model checker) do in theory?

As I explained briefly, what we are most interested in is taking histories of reads/writes and seeing if they conform to the model. That is, we want to verify that the model could have produced the given history of observations. Consequently, if the model is a single atomic object where all reads and modifications happen serially, our history is linearizable by definition.

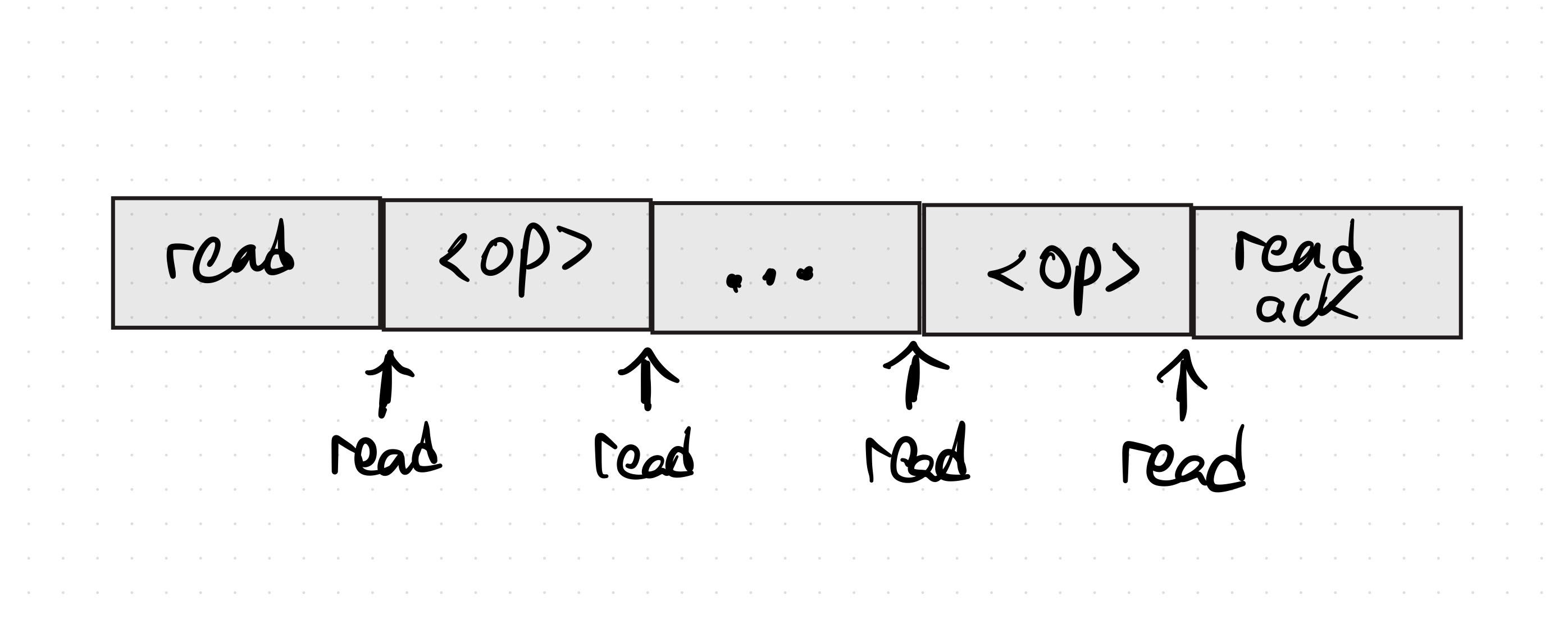

What does conform to the model mean exactly? It means that we let the model run wild changing its internal state as long as it serves the reads and writes that we observed in the correct order. That is, if a client asks to read a value and gets back an ack, the model could serve the read at any point after the request was sent but before the response was received. This is crucial as it limits the window of time where each operation can take place.

You can extend the idea to multiple operations in a straightforward way. Let's take the folowing history as an example:

1. [a] read
2. [b] write
3. [a] read ack
4. [b] write ack

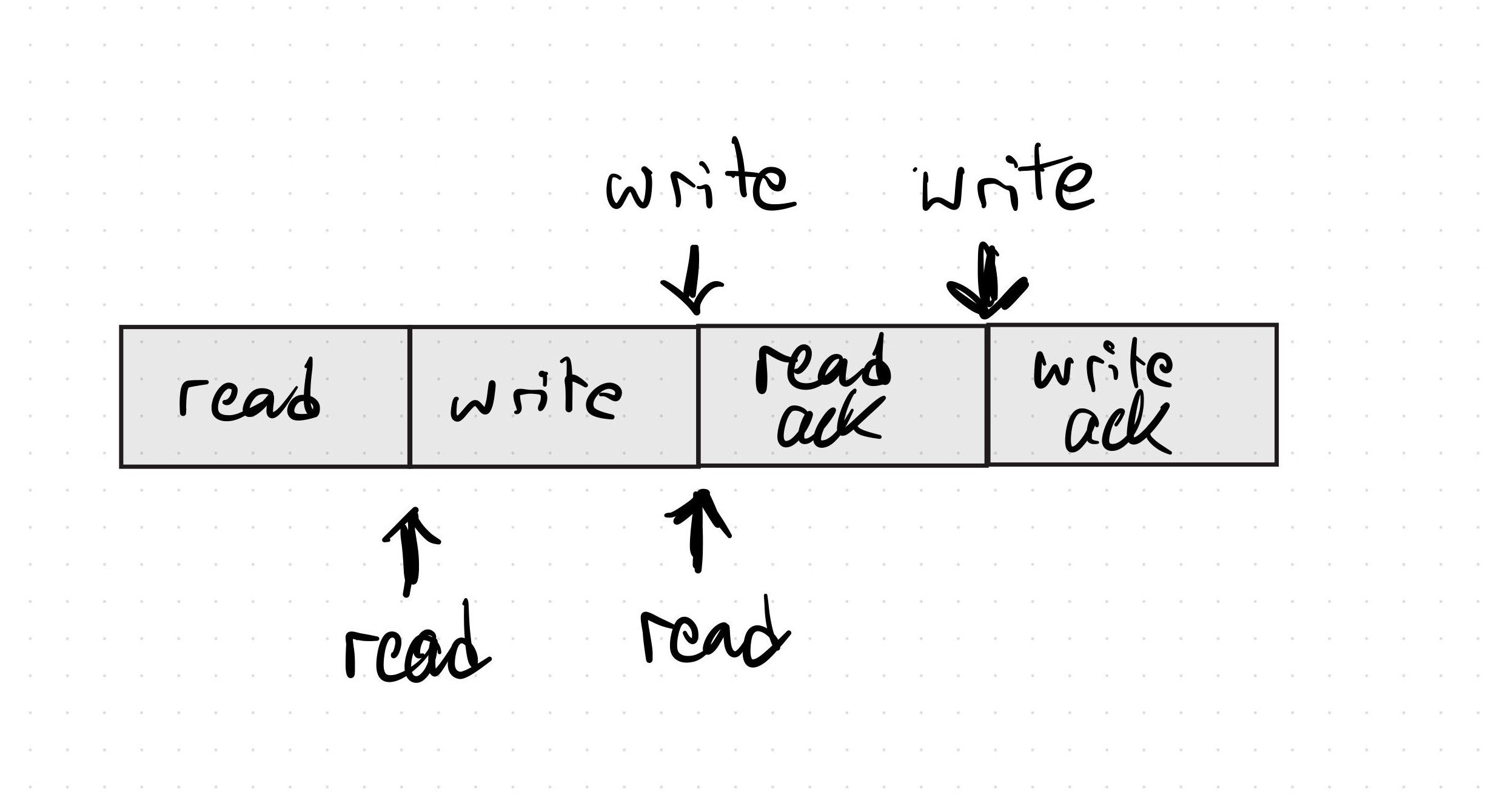

The model could have executed the following orderings:

How do we know which of them, if any, are valid? Because the acks carry values which rule out many possilibities. For example, if b writes the value foo and the a reads bar, we know the read cannot have happened after the write as it would have seen the value foo. By combining all the observations we can rule out all the orderings where the observations are not consistent with our model. If and only if at least one ordering is left at the end then our history of observations if linearizable.

Our own linearizable model in TLA+

I will take the liberty to change slightly the model in Kyle's post: instead of implementing a single read/write register, I will implement an append-only list For the same reasons Aphyr choose to use it when implementing Elle. See Elle: Inferring Isolation Anomalies from Experimental Observations. which has no duplicate elements.

By using a list, every time we read we get the complete collection of modifications in the order they were performed. For example if I read an get back [4,2] I know 4 was pushed first followed by 2 and no other writes took place, not in-between, not before and not after. We can then exhaustively explore the model instead of relying on random behaviors, because once the list diverges from expected we know we cannot get back to a good state. Compare it to using a write register where we have two observations: read=1 followed by read=2. There are infinitely many events that could have happened in between this two:

1. write=1
2. read=1
3. write=foo
// Any number of events can happen here as the value
// is overwritten before it is read.
4. write=2
5. read=2

In TLA+, an append only list is very easy to model, we just need two operations:

--------------------------------- MODULE list -------------------------------
EXTENDS Naturals, Sequences, FiniteSets

CONSTANT Values

VARIABLE primary

Init == primary = <<>>

Read == primary

Push(x) == primary' = Append(primary, x)

Next ==
    LET
     added == { primary[i] : i \in DOMAIN primary }
    IN
     \E x \in Values \ added : Push(x)

Spec == Init /\ [][Next]_<<primary>>
=============================================================================

As simple as that. Note that our semantics for Next dictate that each valid behavior of this spec is one where each value in the list is unique!

How to verify the trace

Ok, we have a model now, but how do we verify our history of observations against it? We need to keep track of two things:

• pending operations, i.e. requests that have been sent but for which no response (ack) has been yet received.
• The portion of the history we have already consumed.

In every step, we can either:

• Pop from the trace and put the operation into pending. When finding responses (acks) we need to make sure we have already executed the corresponding request.
• Execute an operation queued in pending against the model.

Exploiting TLC's state exploration capabilities we can check all possible interleavings easily. Let's see first the Next predicate which will give us a pretty good idea of how each action is executed The TLA model is more general than what was described as it supports histories from multiple client processes which may interleave arbitrarily, i.e. there is no synchronization among clients, which is why Next can choose any process. :

\* Note: When no further events can be executed, Next is disabled.
Next ==
    \E p \in Processes :
        \/ ConsumeTrace(p)
        \/ \E id \in DOMAIN pending[p] : ConsumePending(p, pending[p][id]) /\ UNCHANGED <<counter>>

Our traces are just JSON records that contain a field to identify the pair request/response and either the value to append or the value that was read. The following is an example:

{"type":"Push","id":1,"value":2}
{"type":"PushFinished","id":1}
{"type":"Read","id":2}
{"type":"ReadFinished","id":2,"value":[1,2]}
{"type":"Read","id":3}
{"type":"Read","id":4}
{"type":"ReadFinished","id":3,"value":[1,2]}
...

As explained above the first action will read from the trace and will add the operation to the pending list:

\* Add the event to the queue of pending events for the process p.
AddPending(p, event) ==
    LET newPendingP == [i \in DOMAIN pending[p] \cup {event.id} |-> IF i = event.id THEN event ELSE pending[p][i]]
    IN pending' = [pending EXCEPT ![p] = newPendingP]

\* Consume an event from the queue by executing it in the abstract model.
ConsumePending(p, event) ==
    /\ \/ /\ event.type = "Push"
          /\ Lst!Push(event.value)
       \/ /\ event.type = "Read"
          \* Look for the associated ReadFinished event to find the data that will be returned.
          /\ LET ids == { i \in DOMAIN Traces[p] : Traces[p][i].id = event.id /\ Traces[p][i].type = "ReadFinished" }
                 values == { Traces[p][i].value : i \in ids }
             IN /\ Assert(Cardinality(values) = 1, "values cannot be != 1")
                \* Check that we could have read this value from the append-only list.
                /\ \E v \in values : v = Lst!Read
          /\ UNCHANGED <<primary>>
    /\ LET newPendingP == [k \in DOMAIN pending[p] \ {event.id} |-> pending[p][k]]
       \* Remove the event from pending.
       IN pending' = [pending EXCEPT ![p] = newPendingP]

As you can see from the code above and the comments explaining it, every time we "execute" a Push operation we will append a value to the list and every time we "execute" a Read operation we check that we can actually read that value from the list. If the value is different than what we expect to read then we cannot execute this event right now. TLA will look for other states and try again later, if there are no other states it means this behavior cannot be linearizable and will be discarded, the exploration will continue from a past point.

The second piece is where we consume the trace and move the counters:

\* Consumes the next event from the trace and adds it to pending.
ConsumeTrace(p) ==
    /\ counter[p] <= Len(Traces[p])
    /\ counter' = [counter EXCEPT ![p] = @ + 1]
    /\ LET event == Traces[p][counter[p]]
       IN
        \/ event.type \in {"Push", "Read"} /\ AddPending(p, event) /\ UNCHANGED <<primary>>
        \* We cannot consume a response (ack) if the request is still not
        \* executed.
        \/ /\ event.type \in {"PushFinished", "ReadFinished"}
           /\ Cardinality({id \in DOMAIN pending[p] : id = event.id}) = 0
           /\ UNCHANGED <<primary, pending>>

The most important bit here is that if we find a ReadFinished or PushFinished event the corresponding Read or Push needs to have been executed already, else it is not a valid behavior.

Lastly, as you can see from the definition of our model, it tolerates arbitrary network reorderings as the confirmation for a subsequent operation may come before a prior one. However, the traces are expected to contain all the responses, and no message loss is tolerated. I will get back to this point and explain it in more depth in Things I have glossed over.

Verifying that the trace is linearizable

This is the most tricky part to express in TLA+ as it requires understanding how TLA+ executes invariants and what refinement is. We would like to know two things:

1. Does the behavior we execute when doing Lst!Read and Lst!Push correspond to a valid behavior of our List model?
2. Have we consumed the whole trace and executed all events?

We can verify 1. by asking TLC to check the property that [](Spec => Lst!Spec) which means that any behavior of our Trace spec corresponds to a behavior of our List spec Informally, our Trace specifies how multiple variables change including primary which is the the only variable Lst!Spec is concerned about; it is oblivious to all others. So the property is equivalent to saying: "verify that every time primary changes it follows Spec!Next". .

In our model, we can specify The avid reader may be asking themselves of what use is to check the refinement when we only use the Push and Read operations which seem to always create a valid behavior. Leaving aside the generality of checking refinement in more complex specs, there are invalid behaviors of our list that are not detected unless we check it: whether a value is duplicated in the list; Push does not restrict it, only Next does. :

Refinement == Lst!Spec

And in the configuration we can ask TLC to check the property:

PROPERTY Refinement

Now, for point 2. we have to get a little bit more creative. TLC is really designed to generate all behaviors and check that they satisfy properties, it does not offer out of the box a capability for seeing if a single behavior that satisfies X exists. Fortunately, we can still use a standard invariant for that use-case. If such a behavior is found then the invariant will be violated and the list of states leading to it will be printed. In our case, the invariant should check that the behavior has not exhausted pending and the traces:

\* Trigger when all processes have consumed their traces and there are not
\* events queued in pending.
Finished == ~(\A p \in Processes : counter[p] > Len(Traces[p]) /\ Cardinality(DOMAIN pending[p]) = 0)

Then simply add the invariant to the configuration:

INVARIANT Finished

Putting it all together

We have:

1. Defined a model of an append-only list of unique elements that is linearizable.
2. We have used TLA to read the traces and to check all interleavings of operations, discarding the invalid ones as soon as the prefix is invalid. We have accomplished this by translating client requests to operations in our model.
3. We ask TLC to check that the execution of our observations correspond to a valid behavior of the list model.
4. Lastly, we ask TLC to find a single behavior that produces the complete history. If it is found it means our history is linearizable, if it is not it means there is no possible linearization!

Things I have glossed over

In a real system experiencing network faults, not only are we going to observe message delays, we are also going to observe message loss. The problem losing the response is that we are not sure whether the operation was executed successfully or not for an unbounded time. We would need to check all interleavings of all histories into the future with this operation. This makes the amount of states explode and TLC will never finish checking them. The solution is to rely on some bound on the network and have the client log that an operation failed after a time t passes such that it is greater than our bound on message transmission.

Now that we mention real time, it is also a good time to wonder if we should model real time into our spec. Adding it would make the model harder to check as that state space will grow enormously and for seemingly no benefit. If we can ensure the client will add the necessary marks when a response is not delivered then modelling real time will not change which behaviors are admitted/rejected. This is not valid the moment we introduce a more complex model were reasoning about time is advantageous and we have constraints like "10s after issuing a successful Push request it will be executed".

The next question is what is the practicality of this approach? how long can the histories be? The answer is that it depends on the model and the histories themselves If all reads/writes are answered immediately and there is no reorderings in the network then the model checker will only be adding one event at a time to a single behavior which makes checking it trivial. In general the number of concurrent behaviors the model checker tracks depends on the number of pending operations. . For a more formal explanation of the problem that explores it from a completely different perspective: finding anomalies instead of finding a linearlizable order; see the excelent paper Elle: Inferring Isolation Anomalies from Experimental Observations which also has a section comparing itself to model checkers and (spoiler alert!) it is much more performant.

Complete spec

For completeness below you will find the complete spec with all the gory details:

--------------------------------- MODULE trace ------------------------------
EXTENDS Naturals, Sequences, FiniteSets, TLC, Json

--------------------------------- MODULE list -------------------------------
EXTENDS Naturals, Sequences, FiniteSets

CONSTANT Values

VARIABLE primary

Init == primary = <<>>

Read == primary

Push(x) == primary' = Append(primary, x)

Next ==
    LET
     added == { primary[i] : i \in DOMAIN primary }
    IN
     \E x \in Values \ added : Push(x)

Spec == Init /\ [][Next]_<<primary>>
=============================================================================

CONSTANT Values
CONSTANT Processes

Traces == [p \in Processes |-> JsonDeserialize("traces/" \o p \o ".json")]

\* Trace is well-formed.
ASSUME \A p \in DOMAIN Traces :
    LET trace == Traces[p]
    IN \A i \in DOMAIN trace :
        LET sameIdsI == {j \in DOMAIN trace : trace[i].id = trace[j].id}
            types == {trace[k].type : k \in sameIdsI}
        \* There are always two events for the same id and they are a pair of
        \* read+ack or write+ack.
        IN /\ Cardinality(sameIdsI) = 2
           /\ \/ types = {"Read", "ReadFinished"}
              \/ types = {"Push", "PushFinished"}

VARIABLE primary

Lst == INSTANCE list

VARIABLE counter
VARIABLE pending

Init ==
    /\ counter = [p \in Processes |-> 1]
    /\ pending = [p \in Processes |-> [id \in {} |-> {}]]
    /\ Lst!Init

AddPending(p, event) ==
    LET newPendingP == [i \in DOMAIN pending[p] \cup {event.id} |-> IF i = event.id THEN event ELSE pending[p][i]]
    IN pending' = [pending EXCEPT ![p] = newPendingP]

ConsumePending(p, event) ==
    /\ \/ /\ event.type = "Push"
          /\ Lst!Push(event.value)
       \/ /\ event.type = "Read"
          \* Look for the associated ReadFinished event to find the data returned.
          /\ LET ids == { i \in DOMAIN Traces[p] : Traces[p][i].id = event.id /\ Traces[p][i].type = "ReadFinished" }
                 values == { Traces[p][i].value : i \in ids }
             IN Assert(Cardinality(values) = 1, "values cannot be != 1") /\ \E v \in values : v = Lst!Read
          /\ UNCHANGED <<primary>>
    /\ LET newPendingP == [k \in DOMAIN pending[p] \ {event.id} |-> pending[p][k]]
       IN pending' = [pending EXCEPT ![p] = newPendingP]

ConsumeTrace(p) ==
    /\ counter[p] <= Len(Traces[p])
    /\ counter' = [counter EXCEPT ![p] = @ + 1]
    /\ LET event == Traces[p][counter[p]]
       IN
        \/ event.type \in {"Push", "Read"} /\ AddPending(p, event) /\ UNCHANGED <<primary>>
        \/ /\ event.type \in {"PushFinished", "ReadFinished"}
           /\ Cardinality({id \in DOMAIN pending[p] : id = event.id}) = 0
           /\ UNCHANGED <<primary, pending>>

Next ==
    \E p \in Processes :
        \/ ConsumeTrace(p)
        \/ \E id \in DOMAIN pending[p] : ConsumePending(p, pending[p][id]) /\ UNCHANGED <<counter>>

Spec == Init /\ [][Next]_<<primary, counter, pending>>

Refinement == Lst!Spec
Finished == ~(\A p \in Processes : counter[p] > Len(Traces[p]) /\ Cardinality(DOMAIN pending[p]) = 0)
GreedyConsumeTrace ==
    \* Speed up model checking by reducing redundant states.
    (\E p \in Processes : counter[p] <= Len(Traces[p]) /\ Traces[p][counter[p]].type \in {"Read", "Push"}) => (counter' # counter)

=============================================================================

and the corresponding example configuration:

CONSTANTS
    Values = {1, 2, 3, 4, 5, 6, 7, 8, 9, 10}
    Processes = {"p1", "p2"}

CHECK_DEADLOCK FALSE

PROPERTY Refinement
INVARIANT Finished
ACTION_CONSTRAINT GreedyConsumeTrace

SPECIFICATION Spec
